ULP 32700 25.6V 6Ah 153.6Wh Lifepo4 battery Pack
Product Details
  • Introduce
  • Parameter
  • Relevant
  • Related Cases
  • Online Message

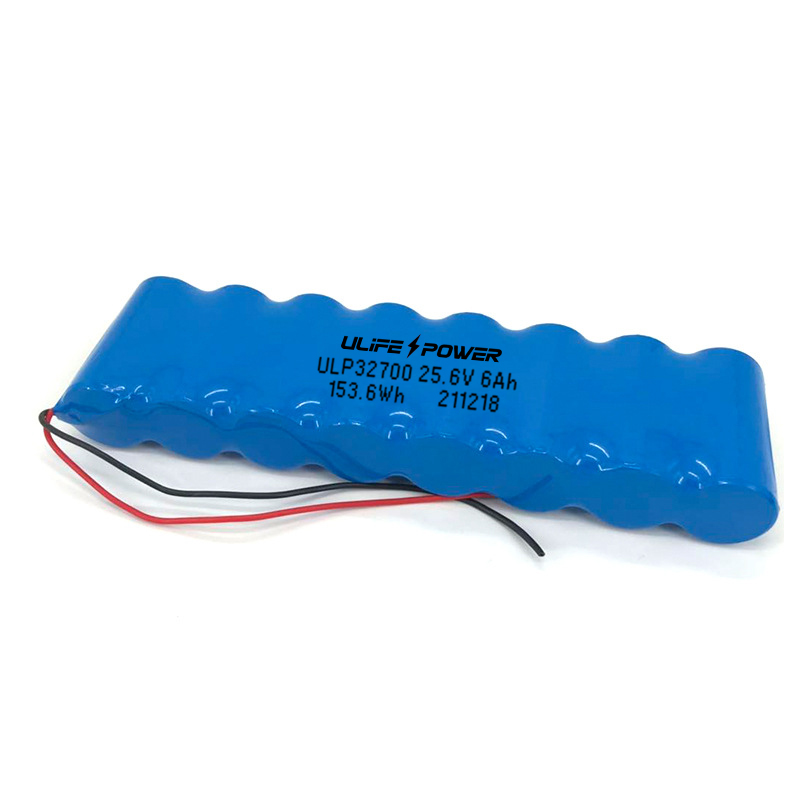

ULP 32700 25.6V 6Ah 153.6Wh Lifepo4 battery Pack

  • Nominal Voltage: 25.6v

  • Nominal capacity: 6Ah

  • Weight: Approx 1.25kg

  • Combination: 32700-8S1P



No

 项目

Items

特性

Characteristics

3.1

额定容量 Nominal capacity



6000mAh (Charge@0.2C

Discharge@0.2C)

3.2

最小容量 Min. capacity

5950mAh (Charge@0.2C

Discharge@0.2C)

3.3

电池组电芯组合结构 Combination structure of battery

32700-8S1P

3.4

额定电压 Nominal voltage

25.6V

3.5

放电终止电压 End of discharge voltage

20.0V

3.6

标准充电电压 Standard charge voltage

29.2V

3.7

标准充电电流 Standard charge current

1200mA (0.2C)

3.8

推荐充电电流 Recommended charge current

3000mA(0.5C)

3.9

最大充电电流  Max. charge current

6000mA(1C)

3.10

标准放电电流 Standard discharge current

3000mA(0.5C)

3.11

推荐放电电流 Recommended discharge current

6000mA(1C)

3.12

最大持续放电电流  Max.continuous discharge current

18A(3C)

3.14

内阻 Internal Resistance

50mΩ cell

3.15

重量 Weight

Approx1.25kg

3.16

出货电量 Ex-factory capacity

Approx.50% SOC

3.17

工作温度

Operation temperature



放电 Discharge

-20~60

充电 Charge

0~45

3.18

储存环境

Storage environment

≤1Month

-20+45℃、575%RH

≤6Month

-10+40℃、575%RH

Recommend environment

15+35℃、575%RH
