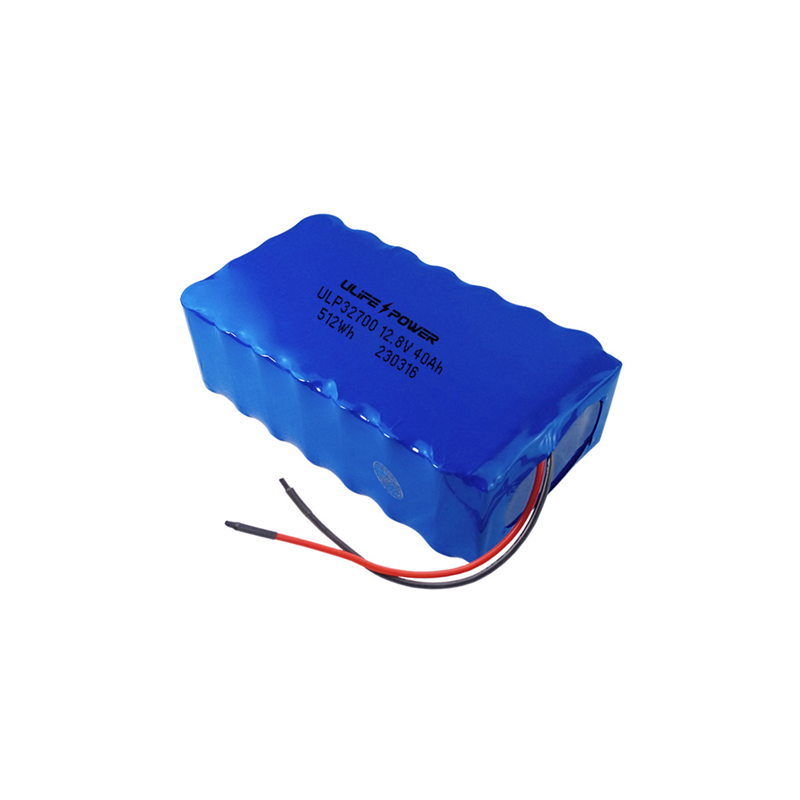

ULP 32700 12.8V 40Ah 512Wh Lifepo4 battery Pack
Product Details
  • Introduce
  • Parameter
  • Relevant
  • Related Cases
  • Online Message

ULP 32700 12.8V 40Ah 512Wh Lifepo4 battery Pack

  • Nominal Voltage: 12.8v

  • Nominal capacity: 40Ah

  • Weight: Approx 4.5kg

  • Combination: 32700-4S7P



No

 项目

Items

特性

Characteristics

3.1

额定容量 Nominal capacity



40Ah (Charge@0.2C

Discharge@0.2C)

3.2

最小容量 Min. capacity

39.5Ah (Charge@0.2C

Discharge@0.2C)

3.3

电池组电芯组合结构 Combination structure of battery

32700-4S7P

3.4

额定电压 Nominal voltage

12.8V

3.5

放电终止电压 End of discharge voltage

10.0V

3.6

标准充电电压 Standard charge voltage

14.6V

3.7

标准充电电流 Standard charge current

8A (0.2C)

3.8

推荐充电电流 Recommended charge current

20A(0.5C)

3.9

最大充电电流  Max. charge current

40A(1C)

3.10

标准放电电流 Standard discharge current

20A(0.5C)

3.11

推荐放电电流 Recommended discharge current

40A(1C)

3.12

最大持续放电电流  Max.continuous discharge current

80A(2C)

3.14

内阻 Internal Resistance

10mΩ cell

3.15

重量 Weight

Approx 4.5kg

3.16

出货电量 Ex-factory capacity

Approx.50% SOC

3.17

工作温度

Operation temperature



放电 Discharge

-20~60

充电 Charge

0~45

3.18

储存环境

Storage environment

≤1Month

-20+45℃、575%RH

≤6Month

-10+40℃、575%RH

Recommend environment

15+35℃、575%RH
