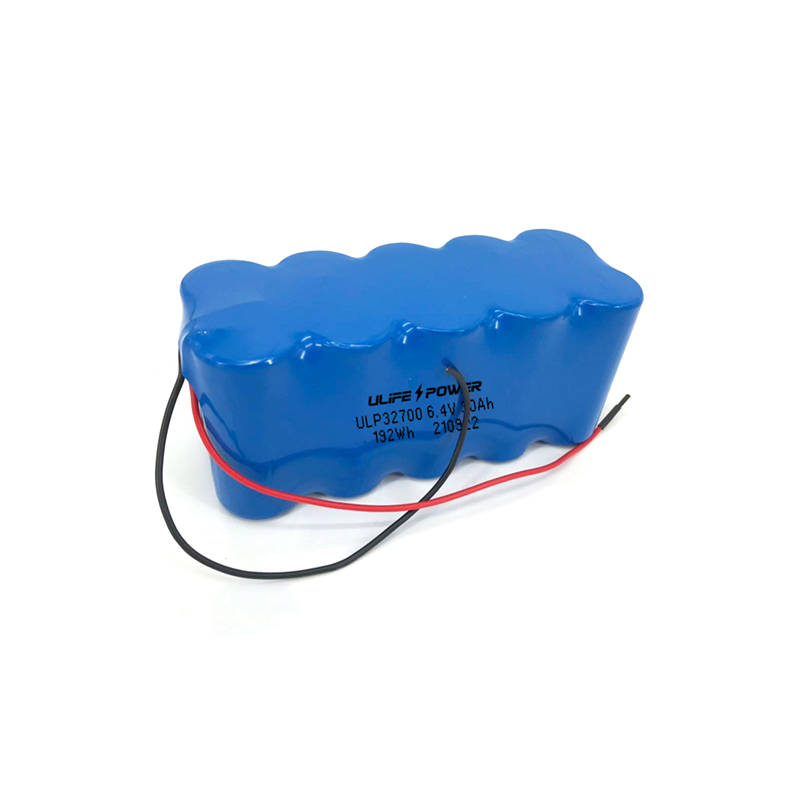

ULP 32700 6.4V 30Ah 192Wh Lifepo4 battery Pack

  • Nominal Voltage: 6.4v

  • Nominal capacity: 30Ah

  • Weight: Approx 1.60kg

  • Combination: 32700-2S5P



No

 项目

Items

特性

Characteristics

3.1

额定容量 Nominal capacity



30Ah (Charge@0.2C

Discharge@0.2C)

3.2

最小容量 Min. capacity

29.7Ah (Charge@0.2C

Discharge@0.2C)

3.3

电池组电芯组合结构 Combination structure of battery

32700-2S5P

3.4

额定电压 Nominal voltage

6.4V

3.5

放电终止电压 End of discharge voltage

4.0V

3.6

标准充电电压 Standard charge voltage

7.3V

3.7

标准充电电流 Standard charge current

6000mA (0.2C)

3.8

推荐充电电流 Recommended charge current

15A(0.5C)

3.9

最大充电电流  Max. charge current

30A(1C)

3.10

标准放电电流 Standard discharge current

15A(0.5C)

3.11

推荐放电电流 Recommended discharge current

30A(1C)

3.12

最大持续放电电流  Max.continuous discharge current

60A(2C)

3.14

内阻 Internal Resistance

10mΩ cell

3.15

重量 Weight

Approx 1.60kg

3.16

出货电量 Ex-factory capacity

Approx.50% SOC

3.17

工作温度

Operation temperature



放电 Discharge

-20~60

充电 Charge

0~45

3.18

储存环境

Storage environment

≤1Month

-20+45℃、575%RH

≤6Month

-10+40℃、575%RH

Recommend environment

15+35℃、575%RH
