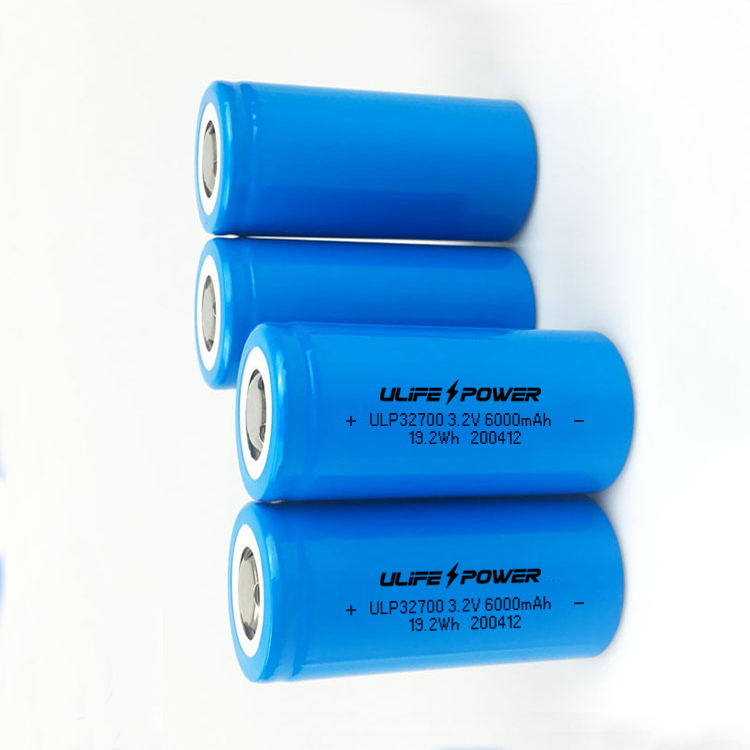

ULP 32700 3.2V 6000mAh 19.2Wh Lifepo4 battery Cell
Model: 32700
Nominal Voltage: 3.2v
Nominal capacity: 6Ah
Weight: Approx 140g
No | 项目 Items | 特性 Characteristics | |
3.1 | 额定容量 Nominal capacity
| 6000mAh (Charge@0.2C Discharge@0.2C) | |
3.2 | 最小容量 Min. capacity | 5950mAh (Charge@0.2C Discharge@0.2C) | |
3.3 | 电池组电芯组合结构 Combination structure of battery | 32700-1S1P | |
3.4 | 额定电压 Nominal voltage | 3.2V | |
3.5 | 放电终止电压 End of discharge voltage | 2.0V | |
3.6 | 标准充电电压 Standard charge voltage | 3.65V | |
3.7 | 标准充电电流 Standard charge current | 1200mA (0.2C) | |
3.8 | 推荐充电电流 Recommended charge current | ≤3000mA(0.5C) | |
3.9 | 最大持续充电电流 Allowed Max. charge current | 6000mA(1C) | |
3.10 | 标准放电电流 Standard discharge current | 3000mA(0.5C) | |
3.11 | 推荐放电电流 Recommended discharge current | ≤6000mA(1C) | |
3.12 | 最大持续放电电流 Allowed Max. discharge current | 18000mA(3C) | |
3.14 | 内阻 Internal Resistance | ≤10mΩ | |
3.15 | 重量 Weight | Approx 140g | |
3.16 | 出货电量 Ex-factory capacity | Approx.50% SOC | |
3.17 | 工作温度 Operation temperature
| 放电 Discharge | -20℃~60℃ |
充电 Charge | 0℃~45℃ | ||
3.18 | 储存环境 Storage environment | ≤1Month | -20~+45℃、5~75%RH |
≤6Month | -10~+40℃、5~75%RH | ||
Recommend environment | 15~+35℃、5~75%RH |
